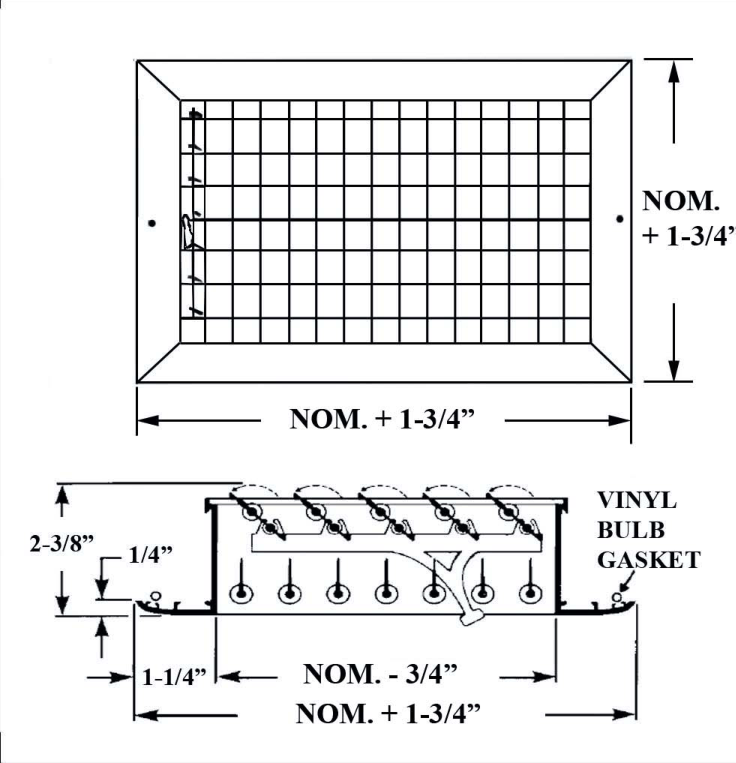

Drawing taken from the submittal sheet for VML. Open the sheet for dimensions, capacities and the full option list.
Supply grille
VML
Single Deflection Supply Register with Vertical Blades (includes multi-shutter damper)
Supply Grilles & Registers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Sidewall, ceiling and floor supply in single and double deflection, curved blade and extruded profiles. Opposed-blade damper options on every family for balancing at the outlet.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- VML
- Single Deflection Supply Register with Vertical Blades (includes multi-shutter damper)
Description
- Construction: 6063 Extruded aluminum frame mechanically interlocked with hairline mitered corner for strength. A single set of 6063 extruded aluminum blades on 3/4" (19.05) centers provide air control in a single plane. The register blades and damper blades are mounted in the same extrusion. The parallel blade damper is operated from the face with an aluminum operator handle. Blades are individually adjustable with zero metal-to-metal contact with the use of nylon bushings to eliminate noise, corrosion and vibration. Extruded flexible vinyl gasket is standard and produces a perfect positive air seal.
- Optional screwdriver operated opposed blade damper with nylon bushings.
- Standard fastening is countersunk screw holes.
- ME (square contour) a standard frame style.
- Standard finish is White.
Specifications
- Model family
- VML
- Product type
- Supply grille
- Category
- Supply Grilles & Registers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: V, VOB, H, HOB, VME, VMEOB, HME, HMEOB, VH, VHOB, VHME, VHMEOB, HV, HVOB, HVME, HVMEOB, VML, VMLME, HML, HMLME
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
