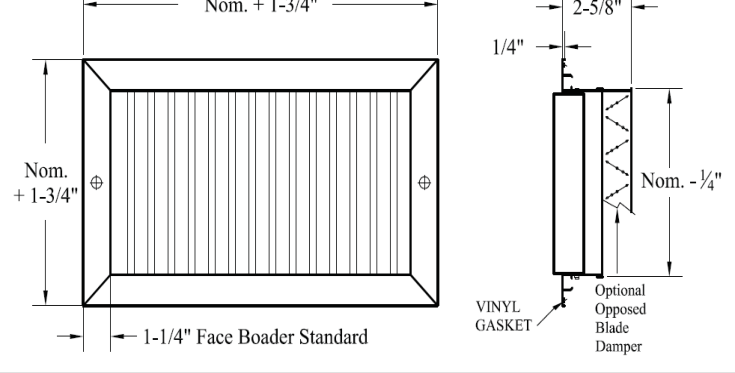

Drawing taken from the submittal sheet for VMEI, VMEOBI, HMEI, HMEOBI. Open the sheet for dimensions, capacities and the full option list.
Supply grille
VMEI, VMEOBI, HMEI, HMEOBI
Single Deflection Industrial Supply Grilles And Registers
Supply Grilles & Registers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Sidewall, ceiling and floor supply in single and double deflection, curved blade and extruded profiles. Opposed-blade damper options on every family for balancing at the outlet.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- VME-I
- Single Deflection Industrial Supply Grille with Vertical Blades and with Square Contour Frame.
- VME-I-OB
- Single Deflection IndustrialSupply Register with Vertical Blades and with Square Contour Frame (includes OB Damper).
- HME-I
- Single Deflection Industrial Supply Grille with Front Blades Parallel to the Horizontal Dimension and with Square Contour Frame.
- HME-I-OB
- Single Deflection Industrial Supply Register with Front Blades Parallel to the Horizontal Dimension and with Square Contour Frame (includes OB Damper).
Description
- Construction: 6063 Extruded aluminum frame mechanically interlocked with hairline mitered corner for strength. A single set of 6063 extruded aluminum blades on with 3/4" spacing provides air control in a single plane. Blades are individually adjustable with zero metal-to-metal contact with the use of nylon bushings to eliminate noise, corrosion and vibration. Extruded flexible vinyl gasket is standard and produces a perfect positive air seal.
- Optional screwdriver operated opposed blade damper with nylon bushings.
- Minimum size: 4" x 4" Maximum size: 48" x 48" For larger and fractional sizes, consult factory.
Specifications
- Model family
- VMEI, VMEOBI, HMEI, HMEOBI
- Models on sheet
- VME-I, VME-I-OB, HME-I, HME-I-OB
- Series
- Industrial Supply Grilles Series
- Product type
- Supply grille
- Category
- Supply Grilles & Registers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
