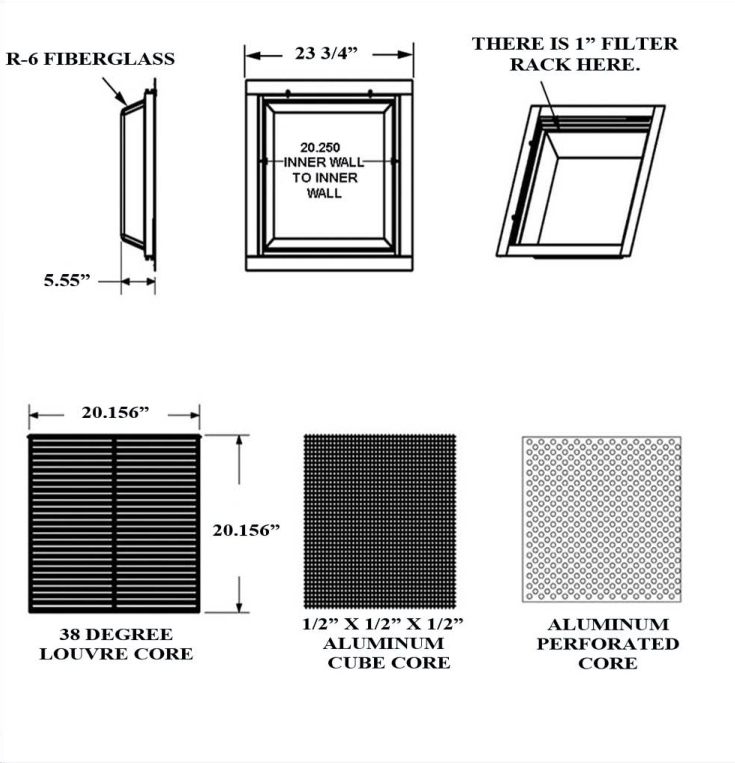

Drawing taken from the submittal sheet for RF3TLFGB, RF3TAGFGB, RF3TPFGB. Open the sheet for dimensions, capacities and the full option list.
Return grille
RF3TLFGB, RF3TAGFGB, RF3TPFGB
Lay-in Return Filter Grille w/ Louvered Core
Return & Exhaust Grilles from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Fixed-bar, aluminum grid, perforated, filter-back and door grilles sized for low pressure drop and a clean face in occupied space. Surface, T-bar and duct-mounted.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- RF-3-T-L-FGB
- Lay-in Return Filter Grille w/ Louvered Core
- RF-3-T-AG-FGB
- Lay-in Return Filter Grille w/ Eggcrate Core
- RF-3-T-P-FGB
- Lay-in Return Filter Grille w/ Perforated Core
Description
- Construction: 6063 Extruded aluminum frame mechanically interlocked for strength. This model is assembled in a 3 part system: first is the mounting frame that serves as a retainer for the filter as well as the R-6 fiberglass back, second is the fast track removable core system that allows easy removal of core and access to filter both while installed, third is the attachment of the R-6 fiberglass back.
- The unit is designed for a standard 20" x 20" (508 x 508) filter
- Available in 24" x 24" (609.6 x 609.6) for t-bar application only
- This unit is versatile in that you can interchange 3 different core styles into the same frame.
- The cores that can be interchanged are the follow: (a) 38° louvered core with rigid PVC track the eliminates corrosion and vibration (standard core style); (b) Aluminum perforated core (get specs); (c) 1/2" x 1/2" x 1/2" (12.7 x 12.7 x 12.7) woven aluminum eggcrate 0.015" (0.38) with 90% free area
- Standard finish is White.
Specifications
- Model family
- RF3TLFGB, RF3TAGFGB, RF3TPFGB
- Product type
- Return grille
- Category
- Return & Exhaust Grilles
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
