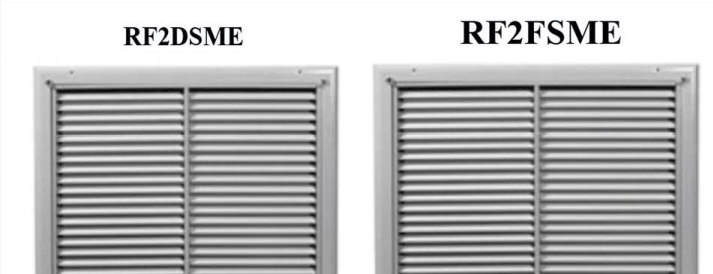

Drawing taken from the submittal sheet for RF2DSME, RF2DSMEOB, RF2FSME, RF2FSMEOB. Open the sheet for dimensions, capacities and the full option list.
Return grille
RF2DSME, RF2DSMEOB, RF2FSME, RF2FSMEOB
Return filter grille with 38° fixed blades. (for duct size)
Return & Exhaust Grilles from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Fixed-bar, aluminum grid, perforated, filter-back and door grilles sized for low pressure drop and a clean face in occupied space. Surface, T-bar and duct-mounted.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- RF2DSME
- Return filter grille with 38° fixed blades. (for duct size).
- RF2DSME-OB
- Return filter grille with 38° fixed blades and opposed blades damper. (for duct size).
- RF2FSME
- Return filter grille with 38° fixed blades. (for filter size).
- RF2FSME-OB
- Return filter grille with 38° fixed blades and opposed blades damper. (for filter size).
Description
- The Model RF2ME is assembled in a two-part system: one is the mounting frame that serves as a retainer for the filter, the other is the core that provides easy access to the filter. The core swings in and out of the mounting frame by means of two concealed pivot pins, and is held in place by two injection-molded nylon locking devices permanently attached to the mounting frame and located at the two corners opposite the pin side.
- The core frame is separated from the blades by an extruded rigid PVC track that becomes an integral part of this frame. This method of assembly eliminates corrosion and vibration. The installation holes of the mounting frame are dimpled, allowing for a counter-sunk fastener head appearance.
- An optional opposed blade damper is attached to the return grille with positive-locking spring clips. It has the same aluminum construction and is screwdriver-operated through the face of the unit.
- Available in clear anodized, white or a variety of custom colors.
Specifications
- Model family
- RF2DSME, RF2DSMEOB, RF2FSME, RF2FSMEOB
- Product type
- Return grille
- Category
- Return & Exhaust Grilles
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Damper option
- Opposed-blade damper available - the OB suffix on the model number
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Suffix note: OB denotes an opposed-blade damper option. Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: RA(OB), RAME(OB), RAAG(OB), RAAGME(OB), RAP(OB), RAPME(OB), RF2FS(OB), RF2FSME(OB), RF2DS(OB), RF2DSME(OB), RAFB(OB)
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
