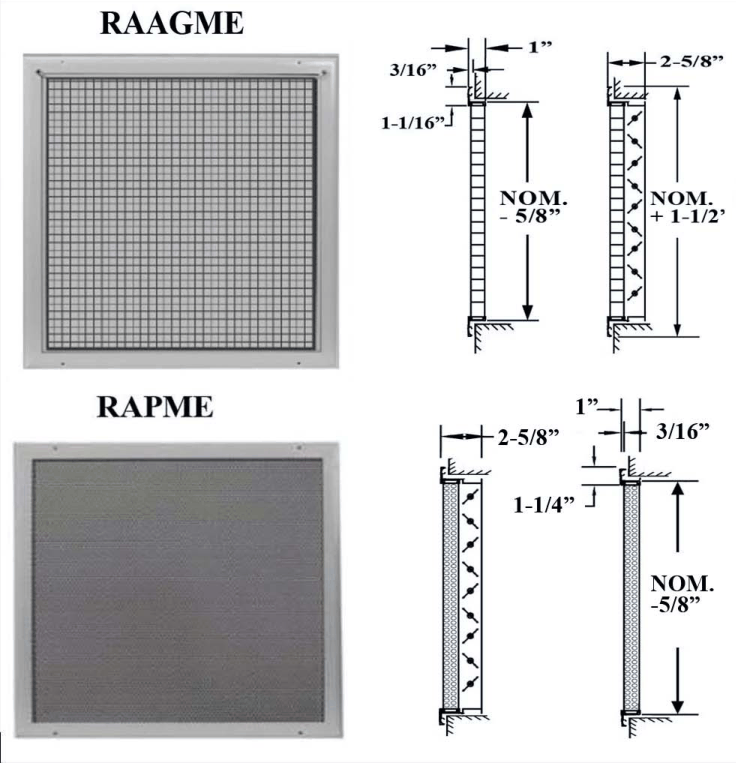

Drawing taken from the submittal sheet for RAAGME, RAAGMEOB, RAAG 1X1X1, RAPME(OB). Open the sheet for dimensions, capacities and the full option list.
Return grille
RAAGME, RAAGMEOB, RAAG 1X1X1, RAPME(OB)
Egg crate return grille with square contour frame
Return & Exhaust Grilles from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Fixed-bar, aluminum grid, perforated, filter-back and door grilles sized for low pressure drop and a clean face in occupied space. Surface, T-bar and duct-mounted.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- RAAGME
- Egg crate return grille with square contour frame.
- RAAGME-OB
- Egg crate return grille with square contour frame and opposed blades damper.
- RAPME
- Return grille with aluminum plate and square contour frame.
- RAPME-OB
- Return grille with aluminum plate, square contour frame and opposed blades damper.
Description
- The Model RAAGME utilizes 1/2" x 1/2" x 1/2" or 1" x 1" x 1" woven mill-finish aluminum eggcrate .015" thick and has square contour frame. Frame and blades are 6063 extruded aluminum alloy with 200-R1 satin anodized finish.
- The Model RAPME utilizes a .032" thick aluminum plate with perforated holes 3/16" in diameter and 1/4" on center, painted with a white lacquer white.
- The frame mounting holes are dimpled, allowing for a counter-sunk fastener head appearance.
- An optional opposed blade damper is attached to the return grille with positive-locking spring clips. It has the same aluminum construction and is screwdriver-operated through the face of the unit.
- Available in clear anodized, white or a variety of custom colors.
Specifications
- Model family
- RAAGME, RAAGMEOB, RAAG 1X1X1, RAPME(OB)
- Product type
- Return grille
- Category
- Return & Exhaust Grilles
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Damper option
- Opposed-blade damper available - the OB suffix on the model number
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Suffix note: OB denotes an opposed-blade damper option. Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: RA(OB), RAME(OB), RAAG(OB), RAAGME(OB), RAP(OB), RAPME(OB), RF2FS(OB), RF2FSME(OB), RF2DS(OB), RF2DSME(OB), RAFB(OB)
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
