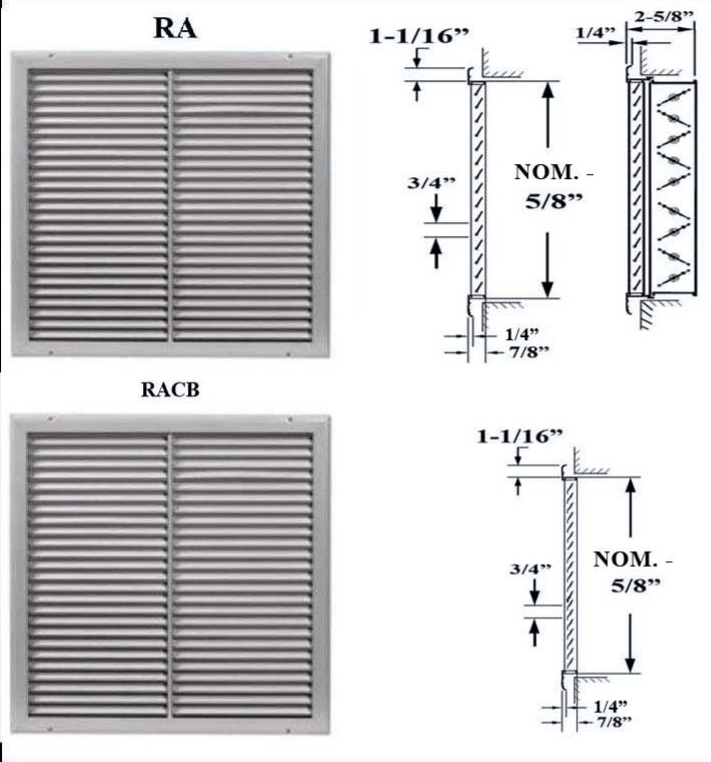

Drawing taken from the submittal sheet for RA, RAOB, RACB. Open the sheet for dimensions, capacities and the full option list.
Return grille
RA, RAOB, RACB
Return grille
Return & Exhaust Grilles from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Fixed-bar, aluminum grid, perforated, filter-back and door grilles sized for low pressure drop and a clean face in occupied space. Surface, T-bar and duct-mounted.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- RA
- Return grille
- RAOB
- Return grille with opposed blade damper
- RACB
- Return grille with curved blades
- RA-0
- Return grille with 0 degree deflection.
Description
- Frame and blades are 6063 extruded aluminum alloy with 200-R1 satin anodized finish.
- The frame has a typical wall thickness of .050", and is separated from blades by an extruded rigid PVC track that becomes an integral part of the frame. This method of assembly eliminates corrosion and vibration.
- The blades are in a fixed position. When airfoil in design, they can be mounted only at the fixed 38° and 0° settings and are spaced 3/4" on center.
- An optional opposed blade damper is attached to the return grille with positive-locking spring clips. It has the same aluminum construction and is screwdriver-operated through the face of the unit.
- Available in clear anodized, white or a variety of custom colors.
Specifications
- Model family
- RA, RAOB, RACB
- Product type
- Return grille
- Category
- Return & Exhaust Grilles
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Damper option
- Opposed-blade damper available - the OB suffix on the model number
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Suffix note: OB denotes an opposed-blade damper option. Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: RA(OB), RAME(OB), RAAG(OB), RAAGME(OB), RAP(OB), RAPME(OB), RF2FS(OB), RF2FSME(OB), RF2DS(OB), RF2DSME(OB), RAFB(OB)
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
Need this model priced?
Send the schedule, the opening sizes and the finish. An application engineer will come back with pricing, lead time and submittals for the job.
