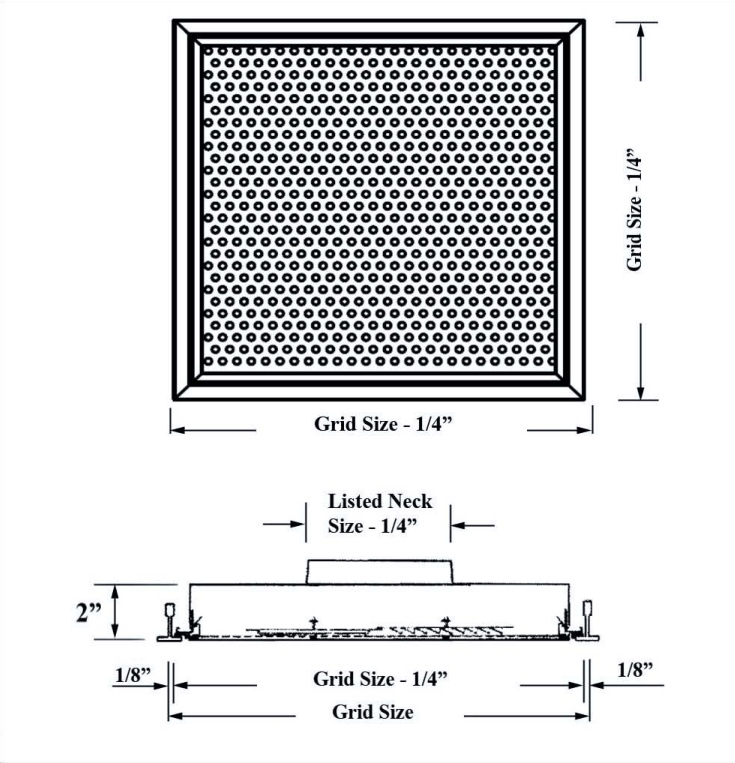

Drawing taken from the submittal sheet for PS1, PS10, PS2, PS20. Open the sheet for dimensions, capacities and the full option list.
Ceiling diffuser
PS1, PS10, PS2, PS20
Perforated supply ceiling diffuser, grid size 24 x 24, round neck
Ceiling Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Square cone, round, perforated face, plaque and adjustable-pattern diffusers for lay-in, surface and flush mount, with a core style and pattern selector to match the throw.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- PS1
- Perforated supply ceiling diffuser, grid size 24 x 24, round neck.
- PS10
- Perforated supply ceiling diffuser, grid size 48 x 24, round neck.
- PS2
- Perforated supply ceiling diffuser, grid size 24 x 24, square neck.
- PS20
- Perforated supply ceiling diffuser, grid size 48 x 24, square neck.
Description
- These models are designed for an inverted T-bar application.
- An extruded aluminum outer frame retaining the removable face is utilized for cleaning after installation. A series of spring clips which are totally concealed retain the face.
- The model PS1 & 2 is designed for a 24"x24" T-bar system, and the model PS10 & 20 is designed for a 48"x24" T-bar system. Both models have field-adjustable pattern control for every conceivable air pattern required. Four individual spring-loaded pattern controls rotate to alter the air pattern.
- All internal portions of the diffuser are non-reflective. A galvanized steel back is utilized with either a round neck spun into it or a square neck riveted to it.
Specifications
- Model family
- PS1, PS10, PS2, PS20
- Product type
- Ceiling diffuser
- Category
- Ceiling Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: PS1, PS2, PS10, PS20, PS1NRF, PS2NRF, PR1, PR1NRF, PR2, PR2NRF
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
