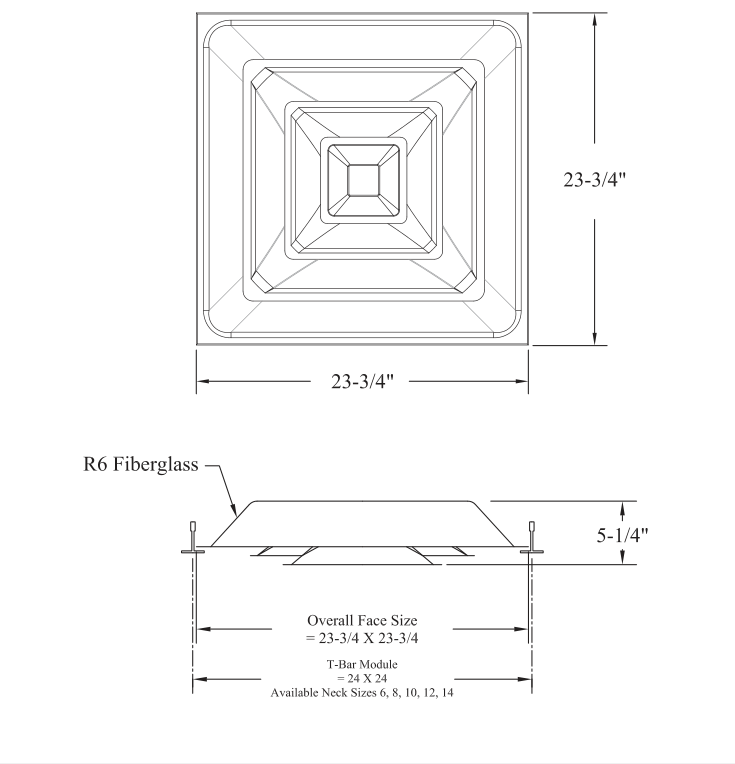

Drawing taken from the submittal sheet for LCD-T-FGB. Open the sheet for dimensions, capacities and the full option list.
Ceiling diffuser
LCD-T-FGB
High Capacity Diffusers For T-Bar Applications
Ceiling Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Square cone, round, perforated face, plaque and adjustable-pattern diffusers for lay-in, surface and flush mount, with a core style and pattern selector to match the throw.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- LCD-T-FGB
- High capacity diffuser for T-bar installation with fiberglass back.
Description
- The model LCD-T-FGB is a high capacity four cone diffuser for 24" x 24" T-bar installation. It is manufactured with aluminized steel to give the durability of aluminum with the strength of steel.
- This model is available in 6", 8", 10", 12", and 14" diameters. It provides a horizontal 360 degree air pattern with exceptional performance in all CFM ranges including variable air volume systems.
- A steel damper (model OBR) accessible through the face is available in all diameters.
- Standard finish is white.
Specifications
- Model family
- LCD-T-FGB
- Series
- T- Bar Diffusers
- Product type
- Ceiling diffuser
- Category
- Ceiling Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series, published for the base model this one is built on.
Sheet covers: LCDT (12x12), LCD-T (24x24)
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
Need this model priced?
Send the schedule, the opening sizes and the finish. An application engineer will come back with pricing, lead time and submittals for the job.
