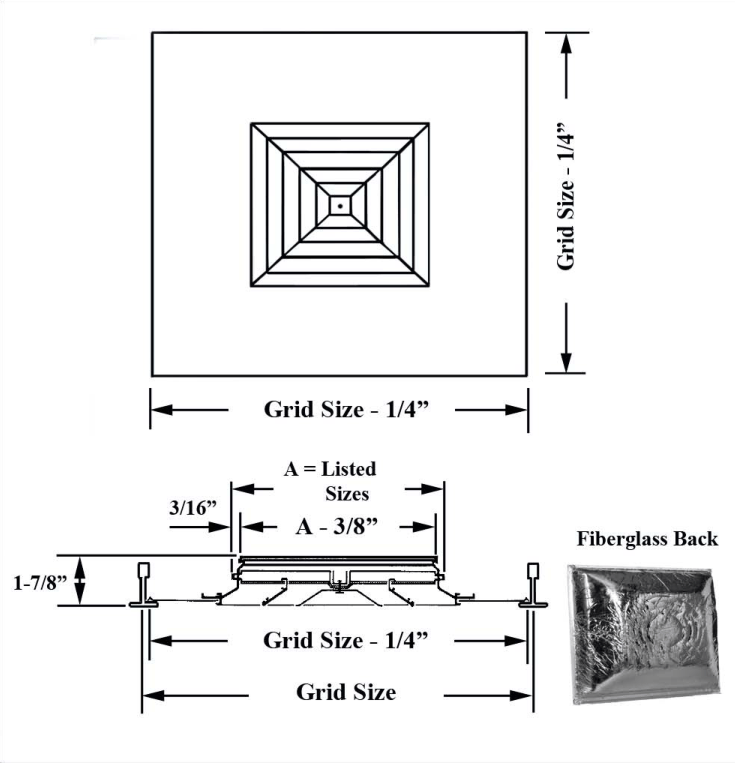

Drawing taken from the submittal sheet for JSPLT, JSPLTFGB. Open the sheet for dimensions, capacities and the full option list.
Ceiling diffuser
JSPLT, JSPLTFGB
Panel mounted ceiling diffuser
Ceiling Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Square cone, round, perforated face, plaque and adjustable-pattern diffusers for lay-in, surface and flush mount, with a core style and pattern selector to match the throw.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- JSPLT
- Panel mounted ceiling diffuser
- JSPLT-FGB
- Panel mounted ceiling diffuser with fiberglass back
Description
- This model is assembled in a two-part system: one is the ceiling diffuser itself with frame and blades extruded from 6063 aluminum alloy, the other is the aluminum panel into which the diffuser with its extruded frame is mounted.
- The core is non-removable. The diffuser increases in 2" increments beginning with 6"x6" through 18"x18" as the largest available size. It is available in square configurations only.
- This model is designed to fit the following T-bar systems: 24"x24", 24"x36", 24"x48", 36"x36", and 48"x48".
- An optional OB damper mounts through a series of spring clips and is lever-operated from the face of the unit.
- This model is painted either in white or aluminum in color.
Specifications
- Model family
- JSPLT, JSPLTFGB
- Product type
- Ceiling diffuser
- Category
- Ceiling Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
