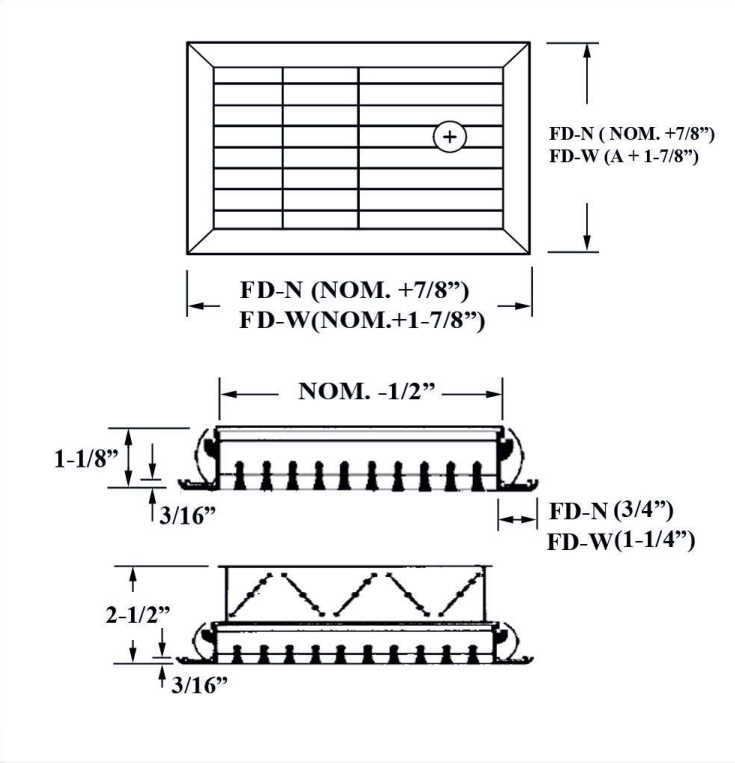

Drawing taken from the submittal sheet for FD-AD. Open the sheet for dimensions, capacities and the full option list.
Linear diffuser
FD-AD
Linear floor diffuser with access door
Linear & Architectural Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Slot, bar and architectural linear diffusers, including sixteen ASD types, for continuous runs that read as one line across the ceiling or sill.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- FD-AD
- Linear floor diffuser with access door
Description
- The model FD-AD offers a linear product with the convenience of an access door for controls, valves or maintenance. Made of 6063 extruded aluminum alloy, the unit is available in clear anodized aluminum or a variety of high performance painted finishes.
- Standard frame width are 3/4" and 1-1/4". Blade angles can be specified as 0, 15, or 30 degree with the thickness being 1/4", spaced on 1/2" centers. Access door length is customer specified up to 16" in length.
- One-piece construction up to 72" with the maximum height being nominal 12".
Specifications
- Model family
- FD-AD
- Product type
- Linear diffuser
- Category
- Linear & Architectural Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: LD, LDOB, LDCO, FD, FDOB, FDAD
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
