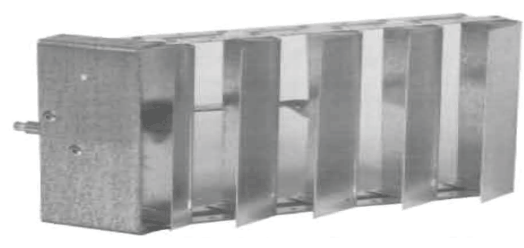

Drawing taken from the submittal sheet for EXR-3, EXR-B. Open the sheet for dimensions, capacities and the full option list.
Accessory
EXR-3, EXR-B
Extractors
Dampers & Accessories from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Opposed-blade and gang-operated dampers, equalizing deflectors, extractors, plenum boxes, filter frames, sight-proof cores and surface-mount rings.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- EXR-3
- Extractor with worm gear control.
- EXR-B
- Extractor with an operator arm.
Description
- Model EXR-3 is an extractor with worm gear control that is operated with a hand crank within the duct. The blades are 24-gauge galvanized steel, the base is 18-gauge, and the straps are 16-gauge.
- Model EXR-B is identical to the EXR-3 with the exception that this unit has an operator arm that extends from the extractor and is manually set. This unit is operated from the inside of the duct.
Specifications
- Model family
- EXR-3, EXR-B
- Series
- Accessories
- Product type
- Accessory
- Category
- Dampers & Accessories
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
Need this model priced?
Send the schedule, the opening sizes and the finish. An application engineer will come back with pricing, lead time and submittals for the job.
