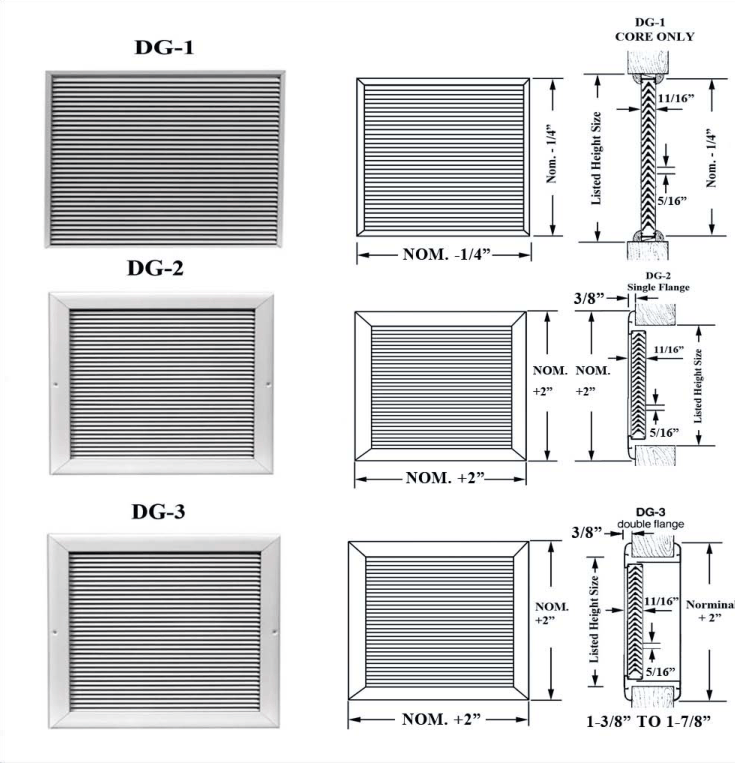

Drawing taken from the submittal sheet for DG-1, DG-2, DG-3. Open the sheet for dimensions, capacities and the full option list.
Return grille
DG-1, DG-2, DG-3
Core only Door/Transfer Grille
Return & Exhaust Grilles from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Fixed-bar, aluminum grid, perforated, filter-back and door grilles sized for low pressure drop and a clean face in occupied space. Surface, T-bar and duct-mounted.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- DG-1
- Core only Door/Transfer Grille
- DG-2
- Single Flange Door/Transfer Grille
- DG-3
- Double Flange Door/Transfer Grille
Description
- Construction: Frame and blades are 6063 extruded aluminum alloy with 200-R1 satin anodized finish.
- Blades are chevron in configuration and are mounted in a fixed position in a rigid PVC track which is an integral part of the frame. It adjusts to suit a door thickness from 1 3/8" to 1 7/8". This configuration will eliminate noise, corrosion and vibration.
- The core free area of this unit is 60%. It is a completely sight-proof design.
- Listed sizes 10" x 6" (254 x 152) through 30" x 30" (762 x 762). Other sizes are available.
- Standard finish is Anodized. Other finishes are available.
Specifications
- Model family
- DG-1, DG-2, DG-3
- Product type
- Return grille
- Category
- Return & Exhaust Grilles
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: DG-1, DG-2, DG-3
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
