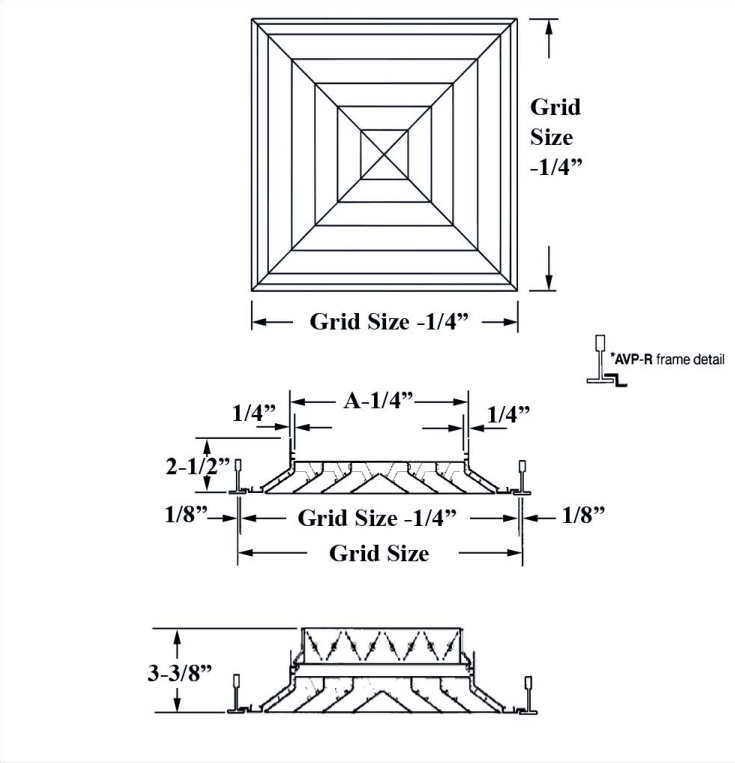

Drawing taken from the submittal sheet for AVPT, AVPTOB, AVPR, AVPROB. Open the sheet for dimensions, capacities and the full option list.
Ceiling diffuser
AVPT, AVPTOB, AVPR, AVPROB
T-bar lay-in ceiling diffuser
Ceiling Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Square cone, round, perforated face, plaque and adjustable-pattern diffusers for lay-in, surface and flush mount, with a core style and pattern selector to match the throw.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- AVPT
- T-bar lay-in ceiling diffuser
- AVPTOB
- T-bar lay-in ceiling diffuser with OB damper
- AVPR
- T-bar lay-in regress ceiling diffuser
- AVPROB
- T-bar lay-in regress ceiling diffuser with OB damper
Description
- Frame and blades are 6063 extruded aluminum alloy and 200-R1 satin anodized finish.
- The special frame of this model is designed so that, when mounted directly on an inverted T-bar, the unit lies flush with the ceiling system.
- The core of this model is fully removable for easy installation. When installed in a regressed ceiling, the diffuser drops 3/8" to install flush to the ceiling plane.
- This model is designed to fit the following T-bar systems: 24"x24", 24"x36", 24"x48", 36"x36", and 48"x48".
- An optional OB damper mounts through a series of spring clips and is lever-operated from the face of the unit.
- Square and rectangular patterns are available.
- Available in clear anodized, white or a variety of custom colors.
Specifications
- Model family
- AVPT, AVPTOB, AVPR, AVPROB
- Product type
- Ceiling diffuser
- Category
- Ceiling Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Damper option
- Opposed-blade damper available - the OB suffix on the model number
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Suffix note: OB denotes an opposed-blade damper option. Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: AVPT, AVPT-OB, AVPR, AVPROB, JST
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
