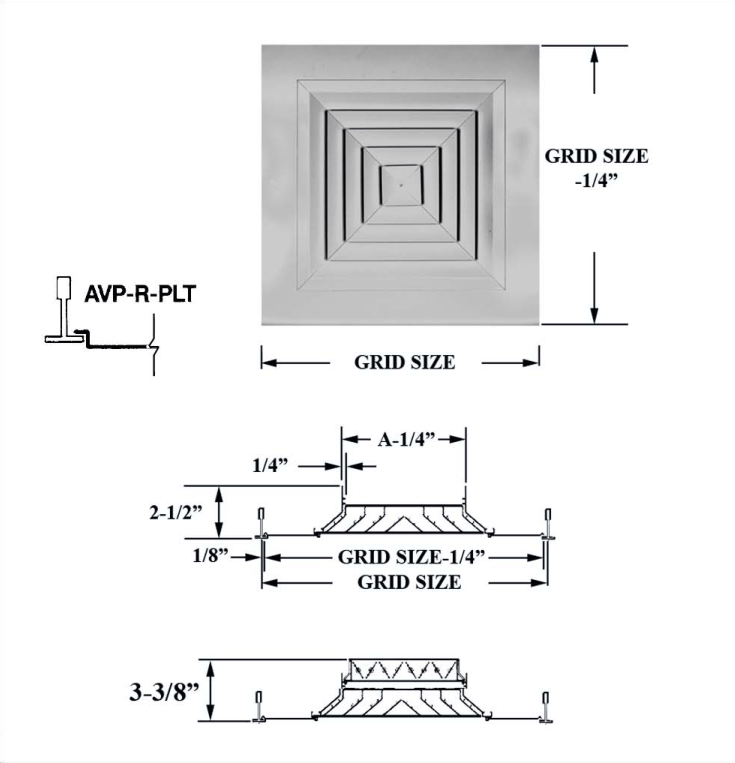

Drawing taken from the submittal sheet for AVPPLT, AVPPLTOB. Open the sheet for dimensions, capacities and the full option list.

Ceiling diffuser

AVPPLT, AVPPLTOB

Name: AVPPLT, AVPPLTOB
Brand: AirGuide Manufacturing
SKU: avpplt-avppltob

T-bar lay-in panel ceiling diffuser

Ceiling Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Square cone, round, perforated face, plaque and adjustable-pattern diffusers for lay-in, surface and flush mount, with a core style and pattern selector to match the throw.

Quote Based PricingAvailability: Unknown

Submittal PDF

Models in this series

AVPPLT: T-bar lay-in panel ceiling diffuser
AVPPLTOB: T-bar lay-in panel ceiling diffuser with opposed blade damper
AVPAPLT: T-bar lay-in panel adjustable ceiling diffuser
AVPAPLTOB: T-bar lay-in panel adjustable ceiling diffuser with opposed blade damper
AVPRPLT: T-bar lay-in panel return ceiling diffuser
AVPRPLTOB: T-bar lay-in panel return ceiling diffuser with opposed blade damper

Description

This model is assembled in a two-part system: one is the ceiling diffuser with frame and blades extruded from 6063 aluminum alloy, the other is the aluminum panel into which the diffuser is mounted.
The core of this model is fully removable for easy installation. When installed in a regressed ceiling, the diffuser drops 3/8" to install flush to the ceiling plane.
This model is designed to fit the following T-bar systems: 24"x24", 24"x36", 24"x48", 36"x36", and 48"x48".
Optional screwdriver operated opposed blade damper with nylon bushings to eliminate corrosion and vibration.
This model is painted either aluminum or white in color.

Specifications

Model family: AVPPLT, AVPPLTOB
Product type: Ceiling diffuser
Category: Ceiling Diffusers
Material: All aluminum construction throughout - not steel with a coating
Sizes: All sizes, including fractional and non-standard (off the chart), made to your exact specifications
Finish: Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
Damper option: Opposed-blade damper available - the OB suffix on the model number
Warranty: Lifetime Warranty* - no noise, no rust, no call backs
Origin: Produced in the USA - Hialeah, Florida · GSA Approved

Suffix note: OB denotes an opposed-blade damper option. Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.

Engineering test data

Airflow, throw, pressure drop and NC performance for this series.

Sheet covers: AVPFM(OB), AVPS(OB), AVPAFM(OB), AVPAS(OB), AVPPLT(OB), AVPAPLT(OB), AVPRPLT(OB), AVPFMRF2, AVPSRF2, AVPRF2T

Test data PDF

Standard and custom

Paint selection

Paint finishes

Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
Clear aluminum anodized finish available

Paint colors

Products come in our standard powder-coated white
Standard custom colors include clear anodized (silver), medium bronze and black
Mill finish is available as a standard custom color for some products
Any other custom colors available upon request
Product can be primed to be field painted upon request

Standard color selection

WhiteStandard powder coat
Clear anodizedSilver
Medium bronzeStandard custom
BlackStandard custom
Mill finishOn some products
PrimerFor field painting
Custom matchOn request

Exact color matching. Send us a paint chip sample and we will match your colors identically.

Swatches are on-screen approximations; actual finishes vary by screen and by product.

Size selection

Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
