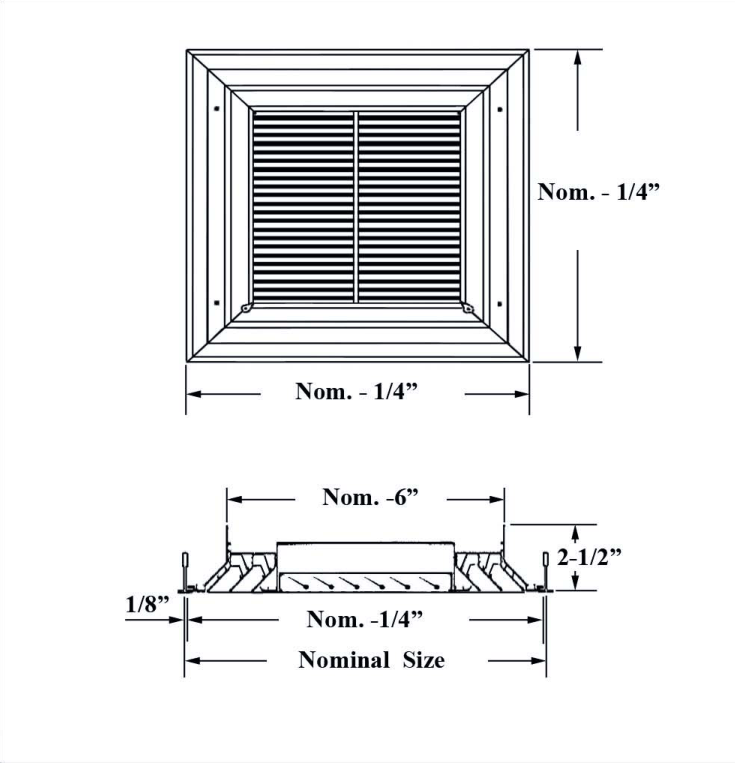

Drawing taken from the submittal sheet for AVP-RF2T. Open the sheet for dimensions, capacities and the full option list.
Ceiling diffuser
AVP-RF2T
Combination Supply-Return Ceiling Diffuser for T-bar Application
Ceiling Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Square cone, round, perforated face, plaque and adjustable-pattern diffusers for lay-in, surface and flush mount, with a core style and pattern selector to match the throw.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- AVPRF2T
- Combination Supply-Return Ceiling Diffuser for T-bar Application.
Description
- This model is designed to serve both supply and return air needs in a single unit: conditioned air is supplied at the outer perimeter, and the return is through the center. It is used in T-bar application.
- The return air filter core swings in and out of its frame by means of two concealed pivot pins, and is held in place by two injection molded nylon locking devices permanently attached to the mounting frame and located at the two corners opposite the pin side.
- Air capacities of 400 CFM through 10,000 CFM can be handled by these units.
- An optional opposed blade damper for the return side is operated by removing the return core. The damper frame is separated from the blades with nylon bushings. This method of assembly eliminates corrosion and vibration.
- Standard finish is Anodized. Other finishes are available.
Specifications
- Model family
- AVP-RF2T
- Product type
- Ceiling diffuser
- Category
- Ceiling Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: AVPFM(OB), AVPS(OB), AVPAFM(OB), AVPAS(OB), AVPPLT(OB), AVPAPLT(OB), AVPRPLT(OB), AVPFMRF2, AVPSRF2, AVPRF2T
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
Need this model priced?
Send the schedule, the opening sizes and the finish. An application engineer will come back with pricing, lead time and submittals for the job.
