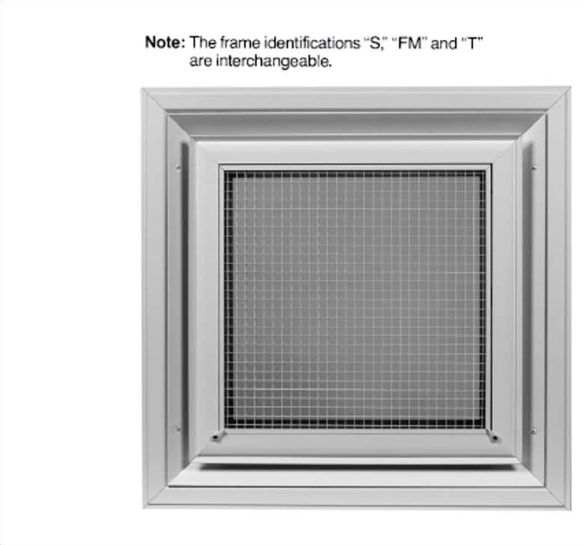

Drawing taken from the submittal sheet for AVP-RF-2. Open the sheet for dimensions, capacities and the full option list.
Ceiling diffuser
AVP-RF-2
This model is designed particulary to serve both supply and return air needs in a single unit: conditioned…
Ceiling Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Square cone, round, perforated face, plaque and adjustable-pattern diffusers for lay-in, surface and flush mount, with a core style and pattern selector to match the throw.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Description
- This model is designed particulary to serve both supply and return air needs in a single unit: conditioned air is supplied at the outer perimeter, and the return is through the center. This unit is available with three different mounting frames: surface mount (S), flush mounted (FM) and T-bar (T). Each frame can accommodate any of the six return filter cores available.
- (1) Return filter core with blades fixed at 38 degree setting. (2) Return filter core with fixed curved blades (CB). (3) Return filter core with blades fixed at 0 degree setting. (4) Return filter core with aluminum grid utilizing 1/2" x 1/2" x 1/2" woven mill-finish aluminum .015" thick. (5) Return filter core with plastic grid utilizing 1/2" x 1/2" x 1/2" molded white polystyrene .080" thick. (6) Retain filter core with aluminum plate .032" thick with perforated holes 3/16" in diameter and 1/4" on center, painted with a white lacquer finish.
- The return air filter core swings in and out of its frame by means of two concealed pivot pins, and is held in place by two nylon latches attached to the frame and located at two corners opposite the pin side.
- Both the mounting frame and the cores with blades are 6063 extruded aluminum alloy with 200-R1 satin anodized finish.
- Air capacities of 400 CFM through 10,000 CFM can be handled by these units.
Specifications
- Model family
- AVP-RF-2
- Product type
- Ceiling diffuser
- Category
- Ceiling Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: AVPFM(OB), AVPS(OB), AVPAFM(OB), AVPAS(OB), AVPPLT(OB), AVPAPLT(OB), AVPRPLT(OB), AVPFMRF2, AVPSRF2, AVPRF2T
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
