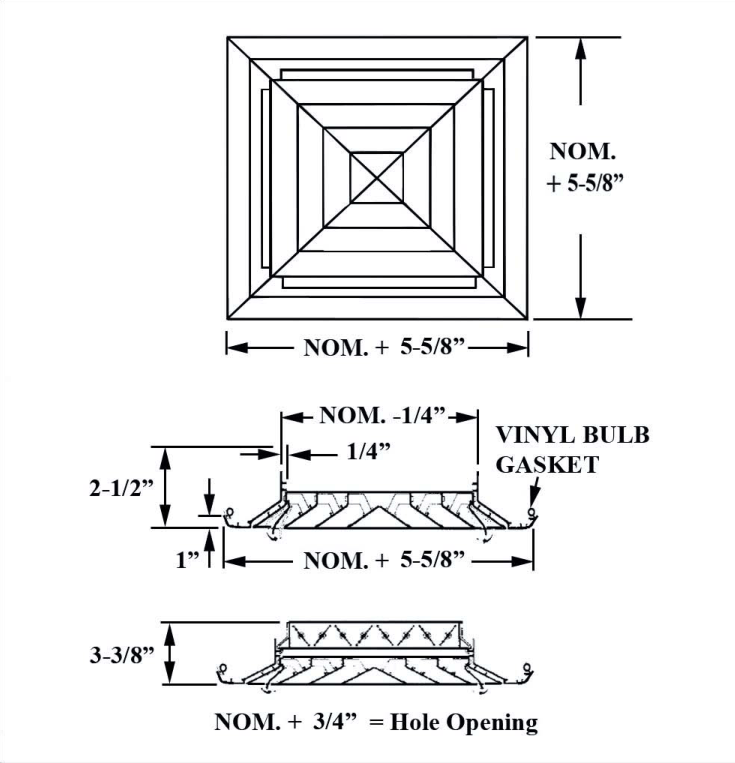

Drawing taken from the submittal sheet for AVP-A-S, AVP-A-S-OB. Open the sheet for dimensions, capacities and the full option list.
Ceiling diffuser
AVP-A-S, AVP-A-S-OB
Surface mounted variable pattern adjustable ceiling diffuser
Ceiling Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Square cone, round, perforated face, plaque and adjustable-pattern diffusers for lay-in, surface and flush mount, with a core style and pattern selector to match the throw.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- AVPAS
- Surface mounted variable pattern adjustable ceiling diffuser
- AVPASOB
- Surface mounted variable pattern adjustable ceiling diffuser with opposed blade damper
Description
- Construction: Frame and blades are 6063 extruded aluminum alloy with 200-R1 satin anodized finish. The frame has typical wall thickness of .050".
- This AVPAS permits easy adjustment (by hand) from horizontal to vertical, or in-between, in locations where periodic changes are required.
- The core of this model is fully removable for easy installation. It is attached to the frame with sheet metal screws using holes that are dimpled, allowing for a counter-sunk fastener head appearance.
- This ceiling diffuser projects 1" from the mounting surface. The unit size increases in 3" increments, beginning with 6"x6" as the smallest available.
- Square and rectangular patterns availble.
- Standard finish is Anodized. Other finishes are available.
Specifications
- Model family
- AVP-A-S, AVP-A-S-OB
- Product type
- Ceiling diffuser
- Category
- Ceiling Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Damper option
- Opposed-blade damper available - the OB suffix on the model number
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Suffix note: OB denotes an opposed-blade damper option. Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: AVPFM(OB), AVPS(OB), AVPAFM(OB), AVPAS(OB), AVPPLT(OB), AVPAPLT(OB), AVPRPLT(OB), AVPFMRF2, AVPSRF2, AVPRF2T
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
Swatches are on-screen approximations; actual finishes vary by screen and by product.
Size selection
Extrusion aluminum technology gives AirGuide the ability to produce all sizes, including fractional and non-standard (off the chart) sizes according to your exact specifications.
