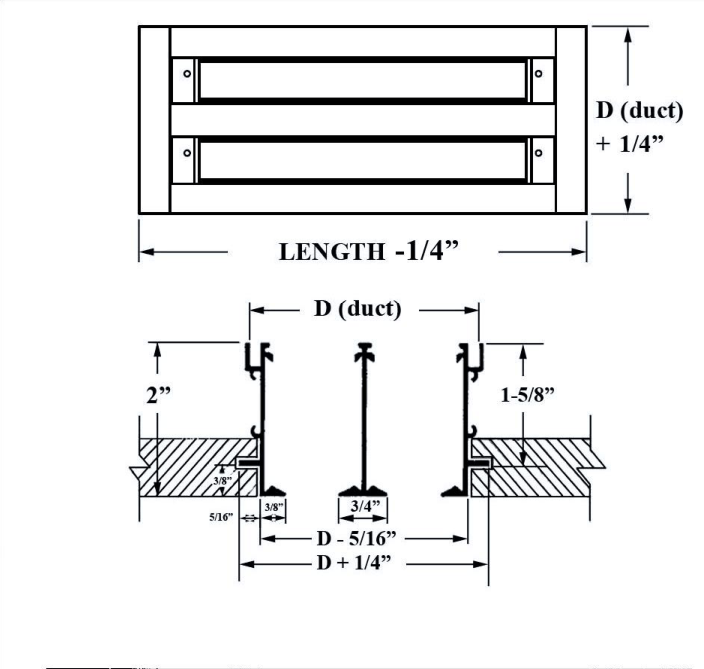

Drawing taken from the submittal sheet for ASD TYPE XV. Open the sheet for dimensions, capacities and the full option list.
Linear diffuser
ASD TYPE XV
Tile mount
Linear & Architectural Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Slot, bar and architectural linear diffusers, including sixteen ASD types, for continuous runs that read as one line across the ceiling or sill.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- ASD TYPE XV
- Tile mount
Description
- Type XV is for tile mount.
- 1/2" slot is not available for this type.
- The suffix “-wide” will add 1/8” to the flange width and 1/4” to the overall dimension.
Dimensions
| Number of Slots | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| “D” Dimension 3/4” | 1-7/8 | 3-3/8 | 4-7/8 | 6-3/8 | 7-7/8 | 9-3/8 | 10-7/8 | 12-3/8 | 13-7/8 | 15-3/8 |
| “D” Dimension 1” | 2-1/8 | 3-7/8 | 5-5/8 | 7-3/8 | 9-1/8 | 10-7/8 | 12-5/8 | 14-3/8 | 16-1/8 | 17-7/8 |
Specifications
- Model family
- ASD TYPE XV
- Product type
- Linear diffuser
- Category
- Linear & Architectural Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
