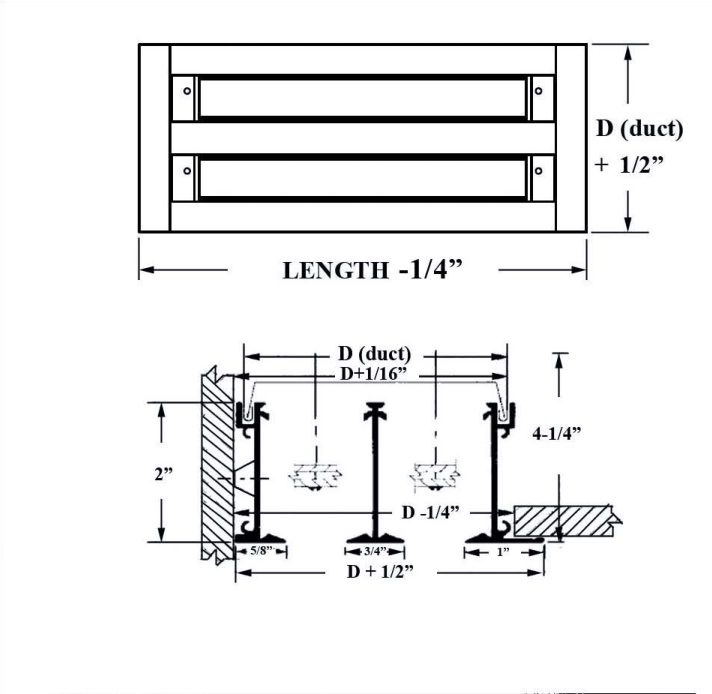

Drawing taken from the submittal sheet for ASD TYPE VII. Open the sheet for dimensions, capacities and the full option list.
Linear diffuser
ASD TYPE VII
Perimeter wall or one-sided T-bar mount
Linear & Architectural Diffusers from the AirGuide all-aluminum line, made to the customer's order in full and fractional sizes, standard and custom colors. Slot, bar and architectural linear diffusers, including sixteen ASD types, for continuous runs that read as one line across the ceiling or sill.
Every model is made to order, so pricing is quoted per job. Send the sizes, quantities and finish and we will come back with a price and a lead time.
Models in this series
- ASD TYPE VII
- Perimeter wall or one-sided T-bar mount.
Description
- Type VII is perimeter wall or one-sided T-bar mount. 1/2" slot is not available for this type.
- The suffix “-wide” will add 1/8” to the flange width and 1/4” to the overall dimension.
Dimensions
| Number of Slots | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|
| “D” Dimension 3/4” | 1-7/8 | 3-3/8 | 4-7/8 | 6-3/8 | 7-7/8 | 9-3/8 | 10-7/8 | 12-3/8 | 13-7/8 | 15-3/8 |
| “D” Dimension 1” | 2-1/8 | 3-7/8 | 5-5/8 | 7-3/8 | 9-1/8 | 10-7/8 | 12-5/8 | 14-3/8 | 16-1/8 | 17-7/8 |
Specifications
- Model family
- ASD TYPE VII
- Product type
- Linear diffuser
- Category
- Linear & Architectural Diffusers
- Material
- All aluminum construction throughout - not steel with a coating
- Sizes
- All sizes, including fractional and non-standard (off the chart), made to your exact specifications
- Finish
- Standard powder-coated white; clear anodized, medium bronze, black and custom color matching available
- Warranty
- Lifetime Warranty* - no noise, no rust, no call backs
- Origin
- Produced in the USA - Hialeah, Florida · GSA Approved
Submittal sheets show the exact configurations, sizes and options available for each model. *See the warranty statement for full terms, conditions and exclusions.
Engineering test data
Airflow, throw, pressure drop and NC performance for this series.
Sheet covers: ASD (all types)
Standard and custom
Paint selection
Paint finishes
- Durable and aesthetically pleasing powder-coated paint for standard extruded aluminum products
- Clear aluminum anodized finish available
Paint colors
- Products come in our standard powder-coated white
- Standard custom colors include clear anodized (silver), medium bronze and black
- Mill finish is available as a standard custom color for some products
- Any other custom colors available upon request
- Product can be primed to be field painted upon request
Standard color selection
- WhiteStandard powder coat
- Clear anodizedSilver
- Medium bronzeStandard custom
- BlackStandard custom
- Mill finishOn some products
- PrimerFor field painting
- Custom matchOn request
Exact color matching. Send us a paint chip sample and we will match your colors identically.
